PVDF Tensile Membrane Fabric

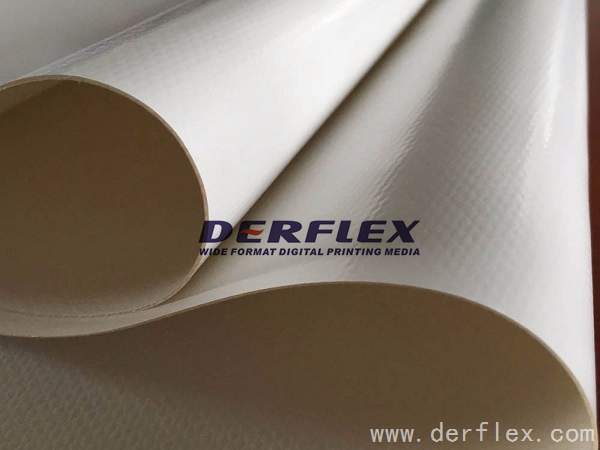

PVDF Tensile Membrane Fabric is a kind of PVC knife coated tarpaulin material with PVDF coating on outer side. The main advantage of PVDF coated tarpaulin material is that, the PVDF prevents the DOP in the PVC from separating out, in this way the PVC tarpaulin would be flexible in outdoor conditions. As it’s tested in DERFLEX lab, The PVDF coated PVC tarpaulin has an outdoor lifetime at 10-15 years.
  • Description
  • Application
  • Related

PVDF: The appearance of translucent or white powder or particles, molecular chains arranged in close, there are strong hydrogen bonds, oxygen index of 46%, non-flammable, the degree of crystallization of 65% to 78%, a density of 1.17 ~ 1.79g / cm3, melting point is 172 ℃, heat distortion temperature 112 ~ 145 ℃, long-term use temperature is -40 ~ 150 ℃.

PVDF coated PVC tarpaulin

PVC knife coated tarpaulin

PVDF coated PVC tarpaulin

PVDF Tensile Membrane Fabric is a kind of PVC knife coated tarpaulin material with PVDF coating on outer side. The main advantage of PVDF coated tarpaulin material is that, the PVDF prevents the DOP in the PVC from separating out, in this way the PVC tarpaulin would be flexible in outdoor conditions. As it’s tested in DERFLEX lab, The PVDF coated PVC tarpaulin has an outdoor lifetime at 10-15 years.



DERFLEX has 2 knife coating lines for advanced PVC tarpaulin material, main products:

DG1122D: 1000D*1000D, 20*20, 18oz

DG1330: 1000D*1000D, 30*30, Panama weave, 26.5 oz.



All possible fabrics and weights can be produced, if you have more interest, you are welcomed to contact us for more information.
