I Rail Dock Shelter Construction

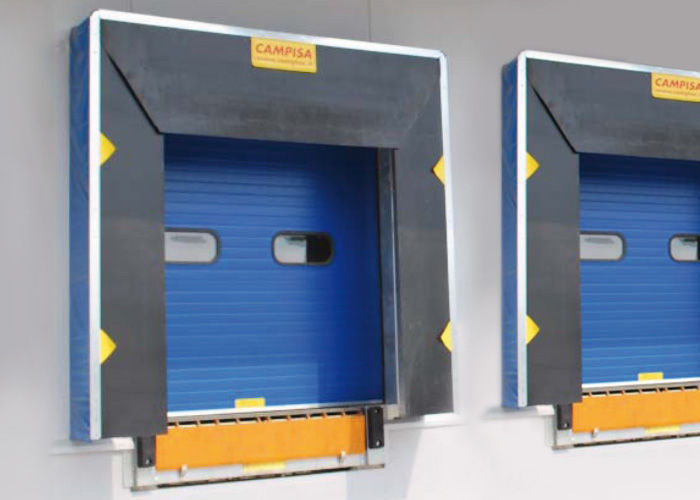

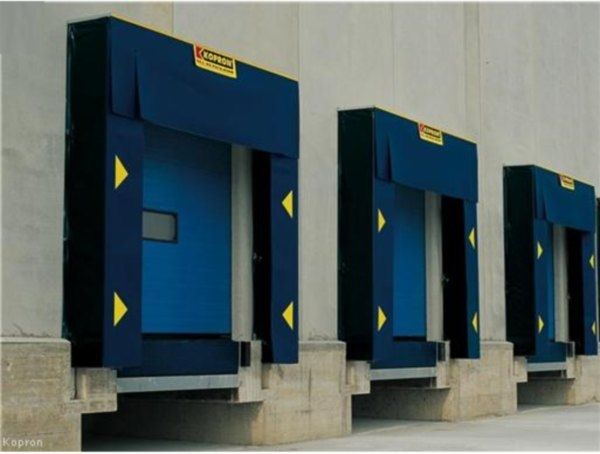

Standard laboratory tests and field experience with various dock seal, dock shelter and rail shelter cover fabrics provide long life and superior tear strength, abrasion resistance, resistance to low temperature cold cracking and weatherability. Chalfant dock seal, dock shelter and rail shelter fabric selections include; vinyl, hypalon and neoprene coated nylon. See fabric weights, types and colors in our fabric performance section.

Head Curtain Assembly - The curtain length shall be equal to the overall unit width and is attached to the frame by fasteners, standard head curtain height is 24".Rollers for Arm and Track - Rollers are four wheel design, made of galvanized steel tested to 1,000 lb. load limit, equipped with needle bearings and sealed. Four rollers furnished with each unit.rack - Continuous slot hot-dipped galvanized 14-gauge steel.Arm and Framing - Galvanized pipe arms with galvanized fittings and continuous hot-dipped galvanized 14-gauge steel channel.

Head Curtain and Side Curtains - Choice of fabrics 22 oz vinyl, 16 oz hypalon, 16 oz neoprene, 40 oz neoprene and 40 oz vinyl, in a wide variety of colors.Guide Stripes - Made of extra layer of vinyl coated fabric sewn on the face of the side curtains.Fiberglass Stays - Stays to be contained between outer and inner covers to insure constant pressure with the truck.Thread - Chalfant carefully selects all materials for durability, including thread which is polyester heavy-duty, minimum size 138 bonded. Meets Federal Specification V-T-285

Four Sided Rail Shelter - Optional four sided rail shelter provides maximum protection of all 4 sides where no platform exist.Mounting Angle - Galvanized 14 gauge steel mounting brackets are used for standard installations.standard laboratory tests and field experience with various dock seal, dock shelter and rail shelter cover fabrics provide long life and superior tear strength, abrasion resistance, resistance to low temperature cold cracking and weatherability. Chalfant dock seal, dock shelter and rail shelter fabric selections include; vinyl, hypalon and neoprene coated nylon. See fabric weights, types and colors in our fabric performance section.

II Types for Rail Shelters

1 Rails V’s Welding on individual spigots:

There are two basic options when attaching the fabric structure to the container; To have your spigots for the frames welded directly onto the shipping container, or to have the spigots welded to a beam which is then locked to the container.

If the structure is likely to stay in the one place, or if when you are going to shift it, the same containers will go with the shelter; then we would recommend that you get the cheaper option of weld-on spigots.

To attach the spigots you mark out the containers, grind the paint off the mounting points and weld the spigots on. The spigots, one in from the end, are mounted on a 25mm plate to bring them to the same height as the corner post blocks. This is an extra weld, but makes sure that the two end frames are square, and the “V” bracing can be installed easily.

2 Bolt-on Rails – Twist-locks:

Bolt on rails remove the need to weld the brackets directly to the containers. They are the easiest and most cost effective option for removal and relocation. The install time is reduced considerably as is the time needed to take down the structure. A big saving in boilermaker services. If you are unable to weld on-site the centre support which is usually welded on can be a bolt-on fitting.

If it is likely you are to be shifting your structure we would strongly recommend bolt-on rails. They will pay for themselves within several moves. The rails lock into the container pin ports with twist-locks. The rails come ready to accommodate 2 x 20′ or 1 x 40′ containers with multiple slotted holes to take the twist-locks.

3 Weld-on Rails

Alternative shelter attachments are weld-on rails which are quicker than welding individual brackets. Mounting frame spigots are pre-welded to the top rail at correct spacing. If you do not plan to move the structures, weld-on rails are worth considering.

There are a number of support points that are welded to the container. This reduces the size of the steel beam and the cost of the rails. If you need to remove the rails in the future you will need to cut them off with oxy-acetylene cutting gear and will have to replace the intermediate mounting blocks before your reinstall the rails.

III Rail Dock Shelter Fabric Features

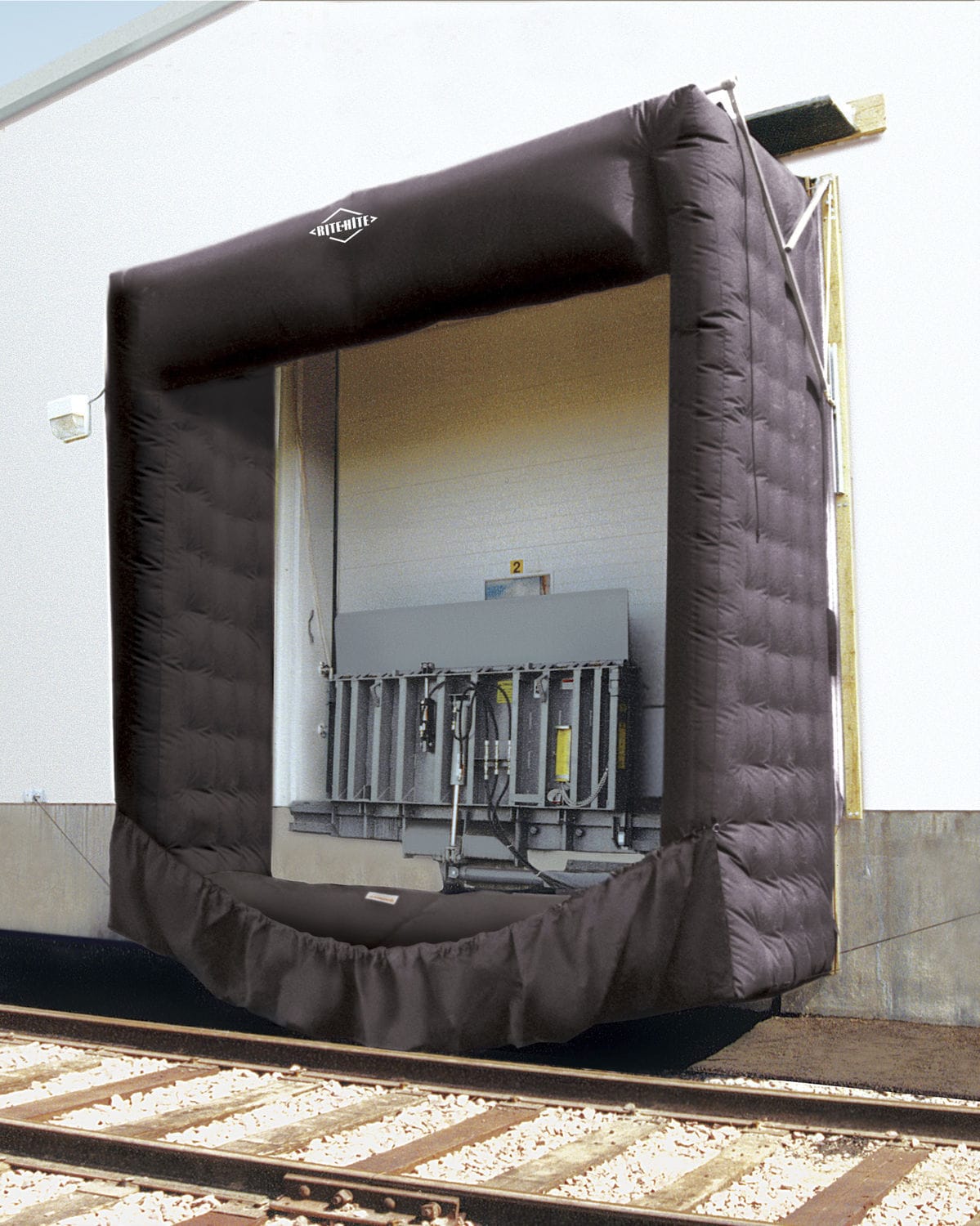

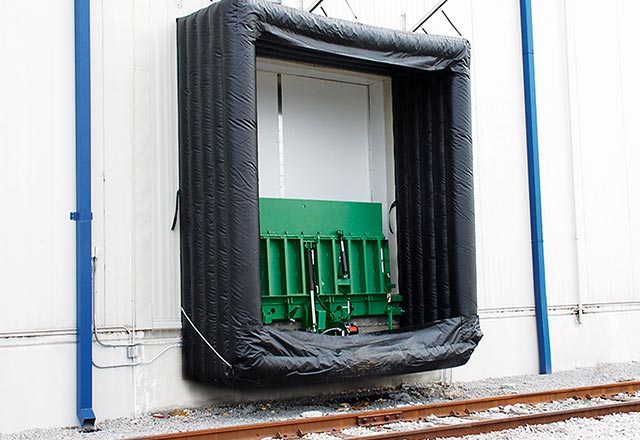

1 The Rail Shelter to provide tight seal against rail cars and prevent weather,
 exhaust dust, bugs, fumes from entering building.

2 Heavy-duty steel square tube frames top and sides covered with a vinyl fabric cover.

3 Flat or optional raked header to allow for drainage.

4 Easy operation for one person to extend the unit or to retract the unit.

5 One (1) year Guarantee against manufacturing defects in material & workmanship from date of installation.

IV Standard Construction Features for rail shelter fabric rolls Summary

1The Rail Shelter to provide tight seal against rail cars and prevent weather,
 exhaust dust, bugs, fumes from entering building.
2 Heavy-duty steel square tube frames top and sides covered with a vinyl fabric cover.
3  Flat or optional raked header to allow for drainage.
4 Easy operation for one person to extend the unit or to retract the unit.
5  One (1) year Guarantee against manufacturing defects in material & workmanship
 from date of installation.

V Benefits for the Rail Shelter fabric material

1 Flexible spring-tension holds extended dock shelter to the side of the railcar for an effective seal.

2 Cord and pulley assembly make extension and retraction an easy, one-person operation.

3 When retracted and secured with tie back straps, unit projects only inches from the building face.

4 Available in 3 or 4 sided units.

5 Wide range of options.

VI Introduction for DERFLEX

DERFLEX is a professional manufacturer of . We have our own factory, which is located in Zhejiang province, China , with 7 production lines, the supply capacity is 300,000sqm/month. We can produce different kinds of wide format digital printing media. Such as coated Frontlit, backlit, laminated PVC tarpaulin, blockout,mesh,self-adhesive vinyl, one-way vision, perforate vinyl, wide format print cotton canvas, PVC coated tarpaulin, photo paper, reflective material, projection screen fabric.

Our main product is PVC tarpaulin and it is widely used as truck/trailer/container cover, tents, pallet cover,strip garden fence,

awnings, inflatable products, adumbral materials for building facility and house.
