How to choose best PVC Fabric for High Speed Fabric Roll Up Door

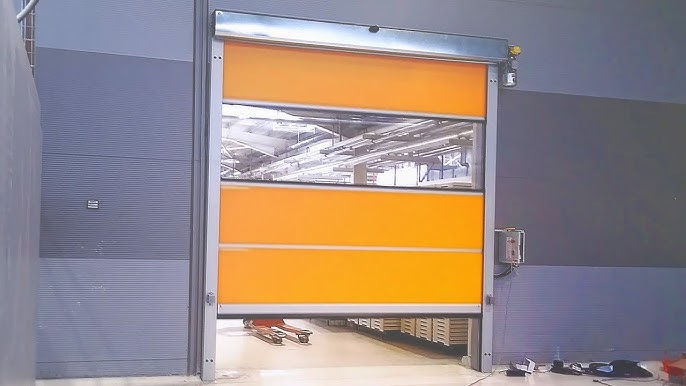

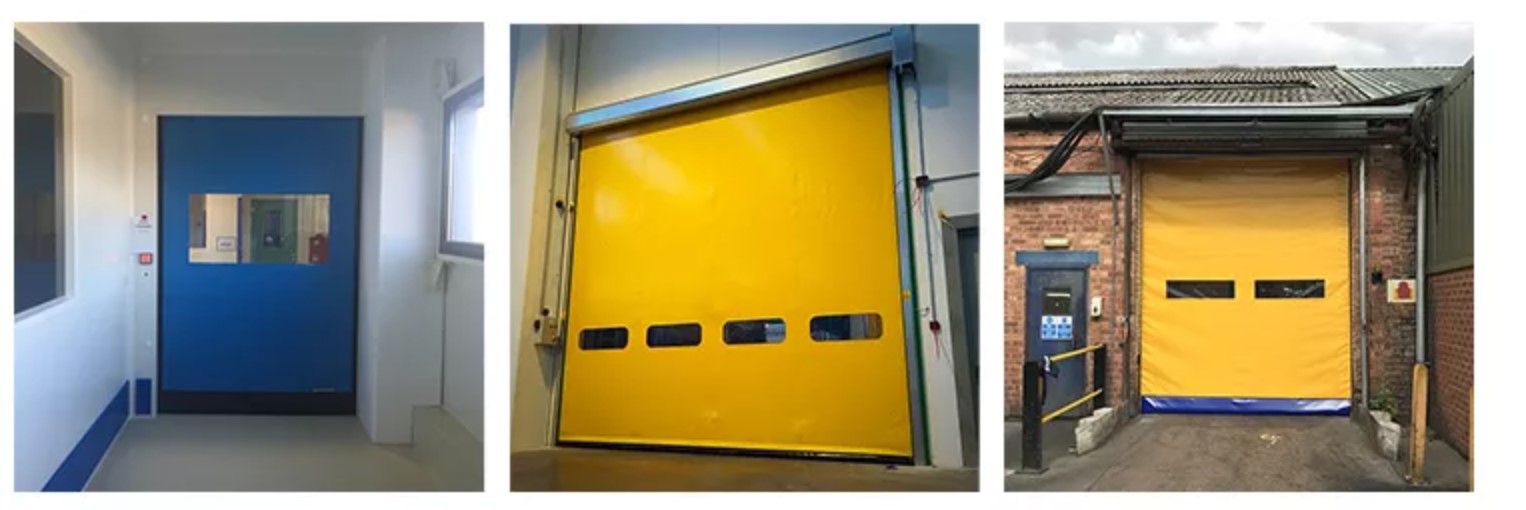

I. What is High Speed Fabric Roll Up Door?

Automatic roll up doors are ideal for heavy traffic areas where convection reduction is the goal. Enviro’s fabric doors operate at a high rate of speed – some with opening speeds of up to 100” per second.

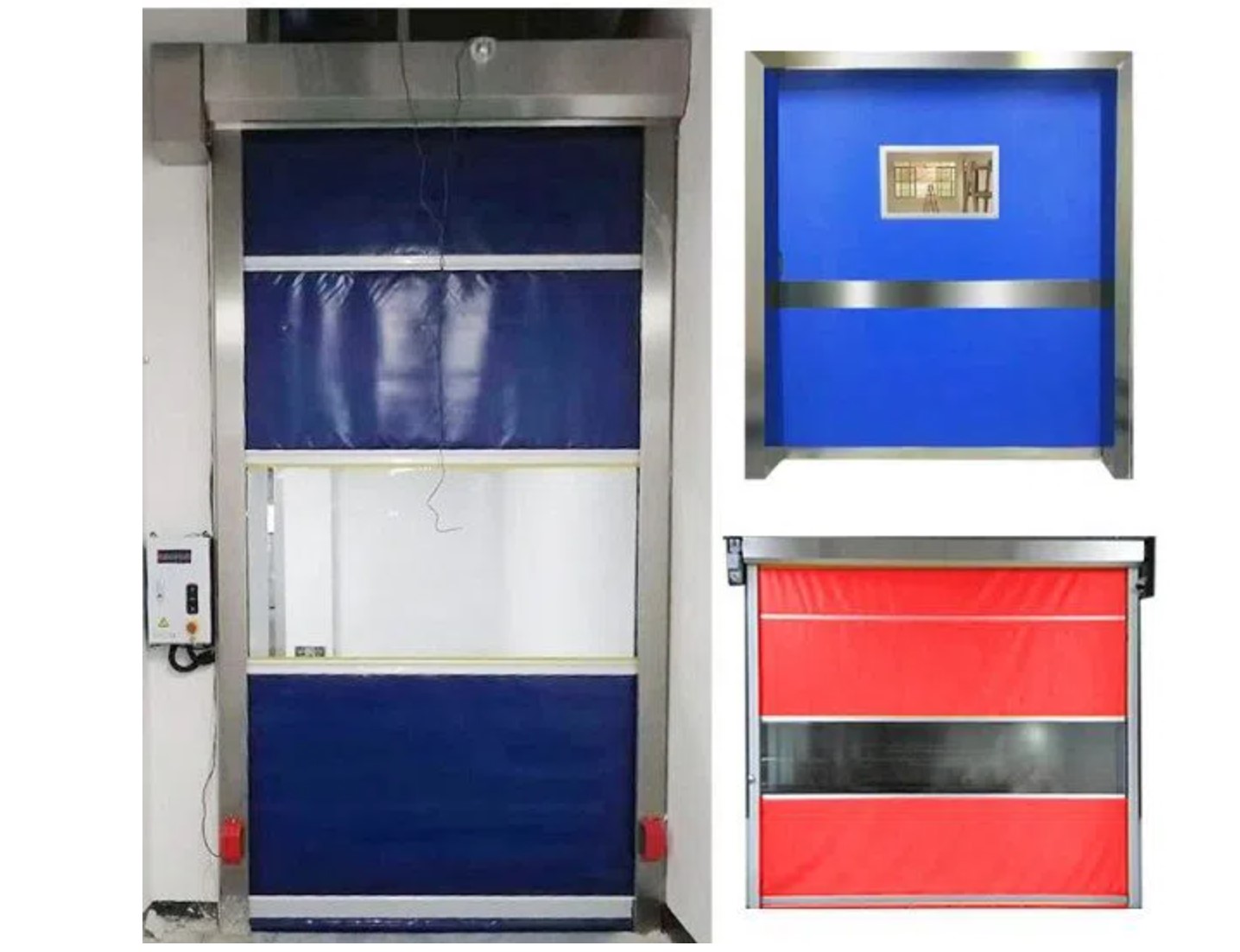

II. Why to use fast shutter door
Fast shutter door is the ideal solution for a workspace where efficiency, speed and reliability are imperative. These doors are designed in such a way that door curtain rolls up at a very high speed on the shaft operated by high performance drives. High speed doors are often installed in combination with other industrial doors such as sectional doors or roller shutters. They are particularly suited for resilient and continuous use inside and outside shutter entry ensure a smooth flow of traffic between buildings or between the building and the outside. They also reduce energy losses during the cold season to a minimum.

III. How to choose best pvc fabric for high speed roll up door
Roll up door fabric is a kind of PVC coated polyester fabric. Vinyl polyester fabric is widely used in many industries and commercial spaces required automatic door solutions that enable quick access among inside and outside areas of building.

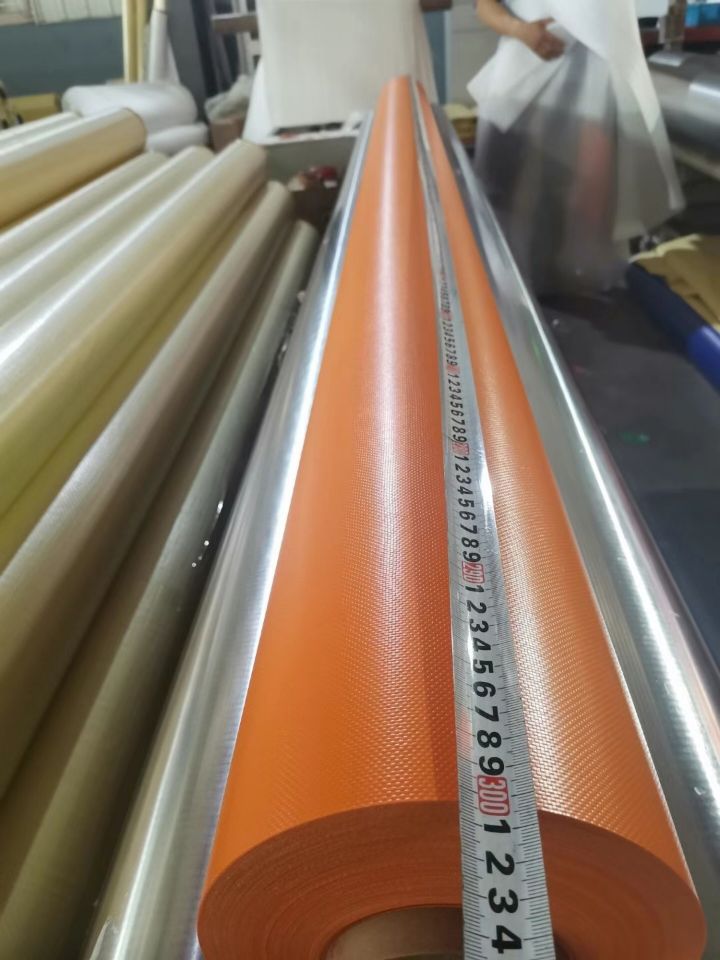

IV. Specifications of Fast shutter door Fabric

Product Name	Rollup door fabric
Base Fabric	1000D*1000D, 30*30
Weight	1050gsm, or customized
Thickness	0.82mm, or customized
Width	1.05M – 3.2M
Roll Length	50 meters or customized
Surface	Glossy, semi-glossy, matt
Tensile strength	>4000N/5cm both direction
Tear Strength	>500N/5cm both direction
Adhesion	>100N/5cm
Color	Customized
Application temperature	-20℃-70℃
Flame Retardant	B1, B2, NFPA701
Surface treatment	Acrylic lacquered, or customized
Packing	Paper Tube + PE film + Craft Paper
Production technology	Hot Melt Coating (Semi-coated)

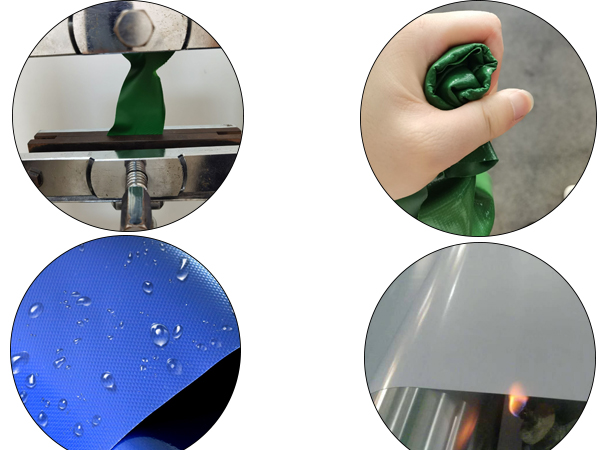

V. Characters of PVC fast speed door fabric
1. It has the functions of waterproof and mildew resistance, and has the characteristics of light material, high tensile strength, acid and alkali resistance, high temperature resistance, convenient washing and folding; good elasticity, flame retardant, and light weight.
2. This product should avoid collision with sharp metal quick mouth during use
3. If the product is damaged during use, it can be repaired with glue;
4. Special treatments such as environmental protection, cold-proof, flame-retardant, mildew-proof and anti-bacterial, electrostatic removal, and surface treatment can be carried out as required.

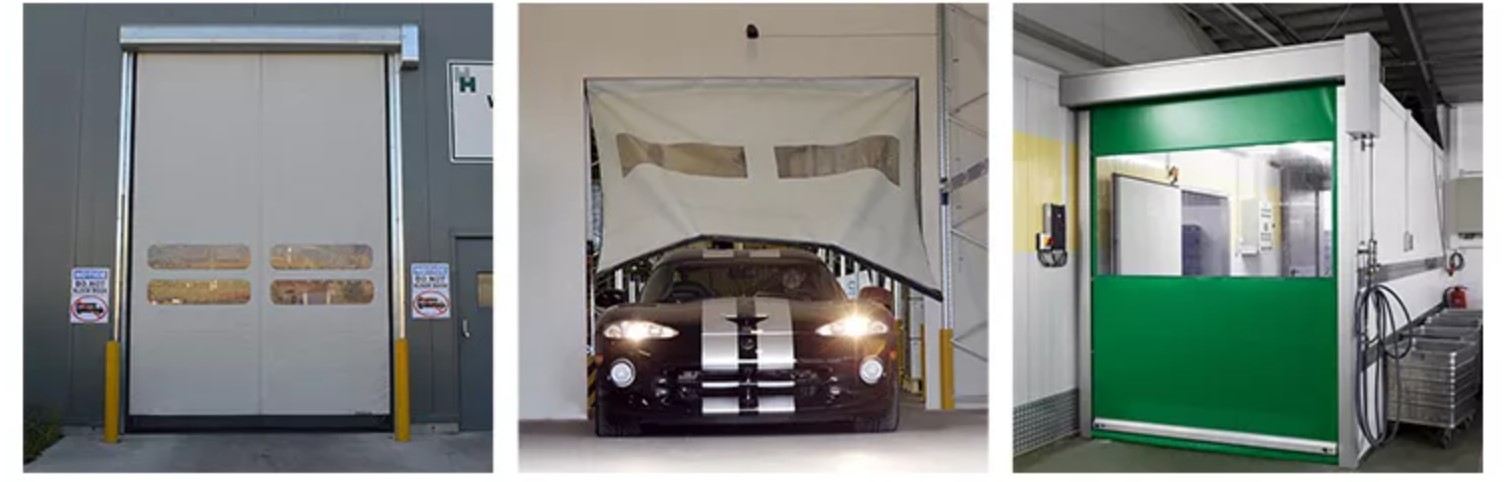

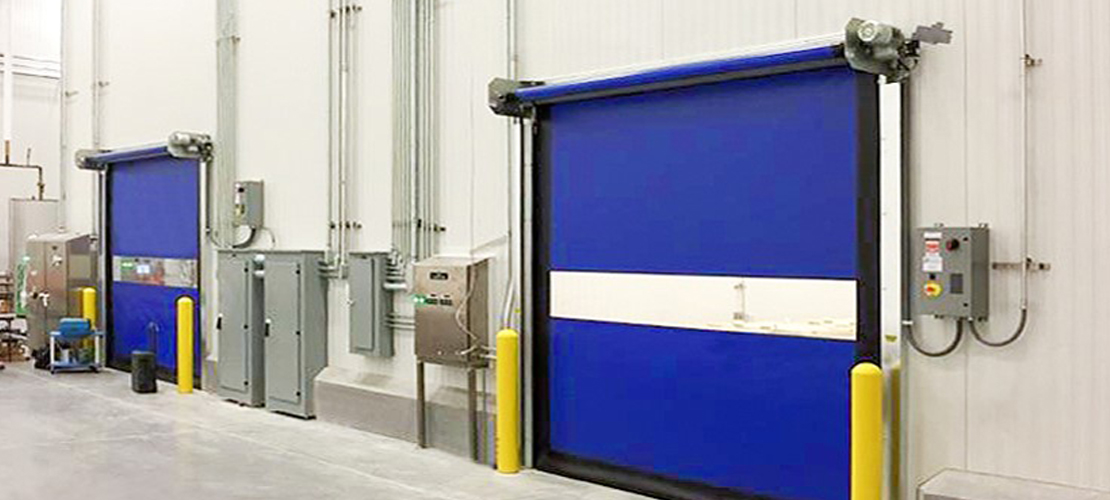

VI. Applications
High-Speed Fabric is Suitable for make fast speed doors for cold storage, food, chemical, pharmaceutical, textile, electronics, machinery, printing, factories, workshops, hospitals, markets, restaurants and other industries and any place.

VII. Other applications of Industrial PVC fabrics

VIII. About DERFLEX
DERFLEX is one of the leading PVC coated polyester fabric manufacturers in China with experience over 20 years.

Welcome to reach Ann Li( What"s APP:+86-187-0192-0943) E-mail: ann@derflex.com for more details.
