What is Hybrid Fiber Fabric?
I Introduction for Hybrid Fiber Fabric
Hybrid composites consist of two or more types of fibers. And the purpose of bringing two fiber types in a single composite is to maintain the advantages of both fibers and alleviate some disadvantages. Meanwhile, hybridization is one of the best attempts to reduce the price. Hybrid Fiber Multiaxial Fabric.

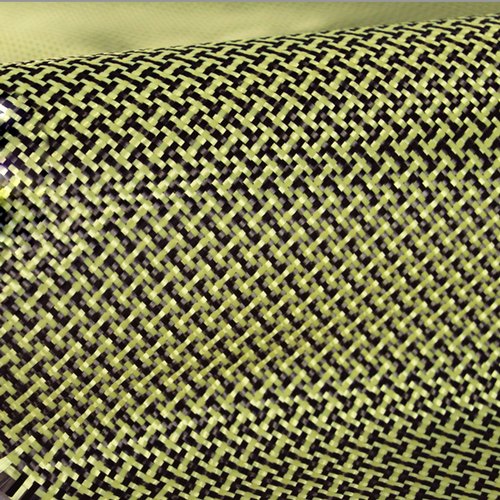

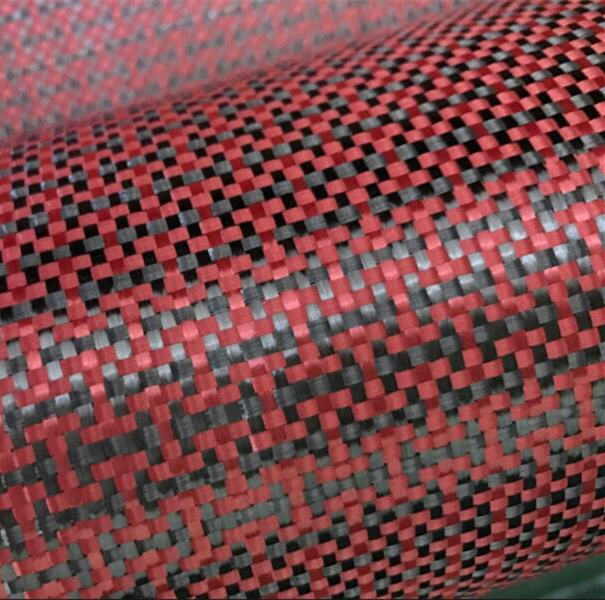

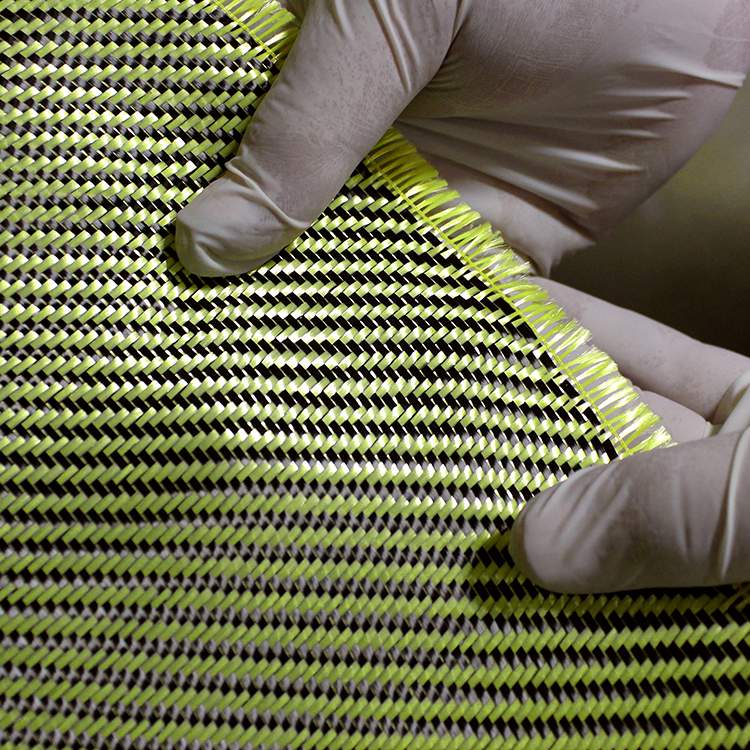

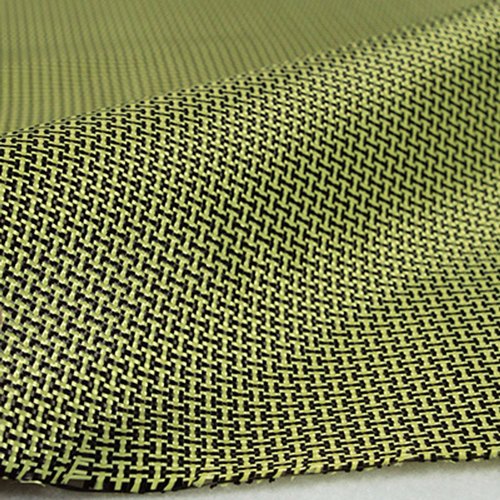

Hybrid fabrics are composite reinforcement fabrics that have been woven from two or more fibre types in order to combine the advantages of more than one material or sometimes overcome a disadvantage or difficulty of a particular fibre type. The most common example of a hybrid reinforcement is carbon/Kevlar which combines the maximum possible stiffness, from carbon fibre, with the tenacity, impact and abrasion strength of aramid fibre (the Kevlar). Other hybrid fabrics include similar combinations such as carbon/Innegra and carbon/Twaron, as well as decorative hybrids which combine carbon fibre with coloured polyester yarn for a distinctive appearance.

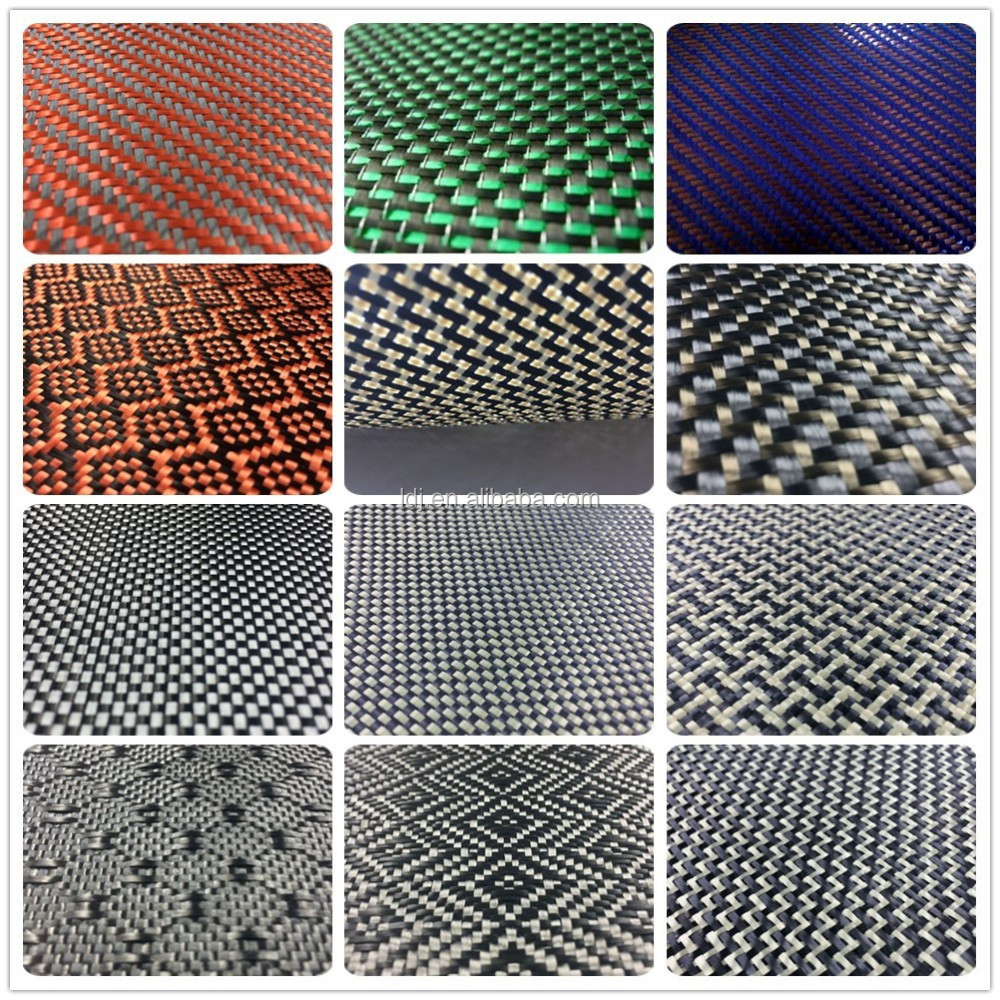

Our range of hybrid woven fabric reinforcements includes carbon fibre combined with, Kevlar, Innegra, Twaron and coloured polyester yearns in a variety of weave styles, in all cases made from premium quality fibre.
II Data sheet for Fiber Comparisons
|
FIBER COMPARISONS | ||||||||
|
|
|
E-Glass |
S-Glass |
Basalt |
Quartz |
Aramid |
Carbon |
UHMWPE |
|
Density |
g/cm3 |
2.54 |
2.48 |
2.7 |
2.2 |
1.44 |
1.78 |
0.97 |
|
Tensile Strength |
Mpa |
2600 |
4800 |
4840 |
6000 |
2400 - 3600 |
5313 |
2200 - 3900 |
|
Modulus |
Gpa |
72 |
85 |
89 |
72 |
60 - 120 |
292 |
65 - 132 |
|
Break Elongation |
% |
4.0 |
5.5 |
3.2 |
3.0 |
2.2 - 4.4 |
1.8 |
3 - 4 |
|
UV Resistance |
|
Excellent |
Excellent |
Excellent |
Excellent |
Poor |
Excellent |
Very Good |
|
Solvent Resistance |
|
Very Good |
Very Good |
Excellent |
Excellent |
Fair |
Very Good |
Excellent |
|
Moisture Absorption |
% |
0.1 |
0.1 |
0.2 - 12.0 |
0 |
3.2 - 7.0 |
0 |
< 0.1 |
|
Max Processing Temp |
°C |
730 Tm=825 |
850 Tm= |
980 Tm= |
1070 Tm= |
450 Td=427-500 |
3500 Td=3700 |
140 Tm=144-152 |
|
Dielectric Constant |
|
6.2 |
5.2 |
2.0 - 3.2 |
3.7 |
3.4 |
conductive |
2.25 |
|
Dissipation Factor |
|
0.003 - 0.004 |
0.002 |
0.003 - 0.015 |
0.0001 |
0.014 - 0.01 |
conductive |
0.0002 |
|
Coefficient of Linear Thermal Expansion |
ppm / K |
5.4 |
2.9 |
8.0 |
0.54 |
-4.0 to -4.9 |
-1.1 |
-12.0 |
III Applications for Hybrid Fabrics
Hybrid fabrics can be used in a wide range of industrial applications:
1 Aircraft applications
2 Industrial applications
3 Medical applications
4 Construction industry applications
5 Aquaculture for waterproof clothing
6 Architecture
7 Windproof clothing
8 Automotive industry in making sear covers, carpets etc
Hybrid fibres posses better mechanical properties, reduce delamination and maximize tensile strength. It is possible to cut this fabric into different widths without the fibres falling apart while laminating or handling. It further posses excellent drapability.
IV Features for Hybrid Fabrics
1 Low areal weights
2 Cost savings
3 Improved impact resistance
4 Various combination possibilities
V Introduction for DERFLEX

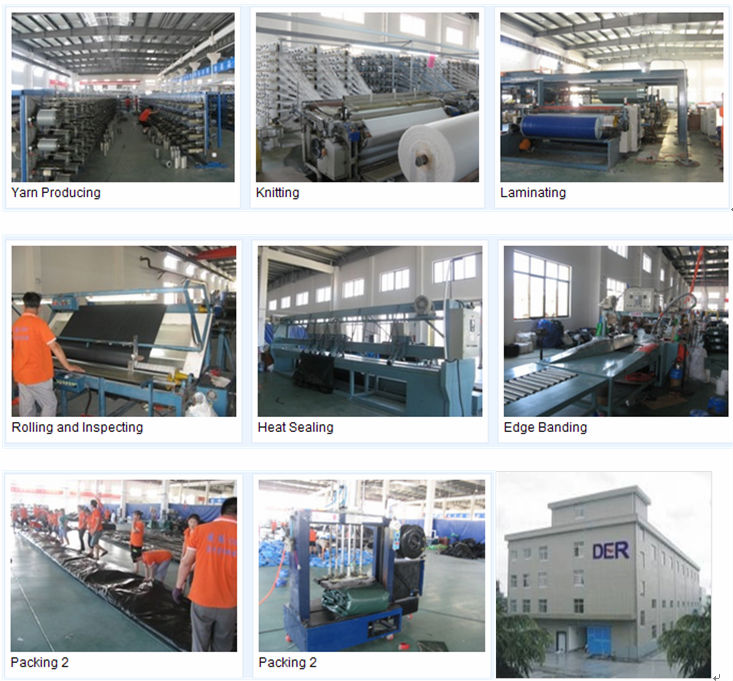

DERFLEX is a professional manufacturer of . We have our own factory, which is located in Zhejiang province, China , with 7 production lines, the supply capacity is 300,000sqm/month. We can produce different kinds of wide format digital printing media. Such as coated Frontlit, backlit, laminated PVC tarpaulin, blockout,mesh,self-adhesive vinyl, one-way vision, perforate vinyl, wide format print cotton canvas, PVC coated tarpaulin, photo paper, reflective material, projection screen fabric.
