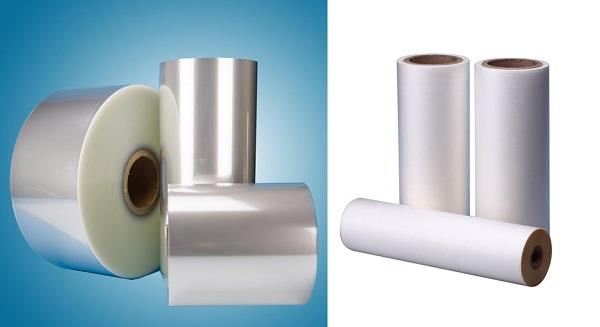

BOPP refers to Biaxially Oriented Polypropylene, The production of Polypropylene film is to make the melt of high-molecular polypropylene into a sheet or thick film through a long and narrow head, and then in a dedicated stretching machine at a certain temperature and set speed, simultaneously or in steps A film made by stretching in two vertical directions (longitudinal and horizontal) and subject to appropriate cooling or heat treatment or special processing (such as corona, coating, etc.).

BOPP film is a very important flexible packaging material. BOPP packaging films is colorless, odorless, non-toxic, and has high tensile strength, impact strength, rigidity, toughness and good transparency.



Advantages of BOPP film for packaging

The two surfaces of the flexible packaging BOPP film have asymmetrical designs with different properties, which can well adapt to high and low speed operation:

High modulus, low static, and good folding parts:

High gloss and low haze, make the cigarette pack pattern clear and bright;

It has the vertical and horizontal shrinkage rate required for high-grade hard-box cigarettes, the packaging film is close to the cigarette box, and the cigarette pack pattern is realistically displayed, and the packaging effect is smooth and beautiful;

With post-shrinkage properties, you can obtain satisfactory packaging results even without a cosmetic device



Semi-shrinkage Packaging Film characteristics

Technical Properties (Typical Values)
Film Type	Semi-shrinkage Cigarette Packaging Film	Width×Length	117mm*2700m		Symbol	21YB
No	Description		Unit	Request	Film Test Results	Method
1	Thickness	Aver.	mic	21.0±1.0	20.7	GB6672-2001
2	Tensile Strength	MD	MPa	≥150	192	GB/T1040.3-2006
		TD		≥250	304
3	Elongation at Break	MD	%	≤180	155
		TD		≤70	60
4	Modulus of Elasticity	MD	Mpa	≥2400	2507	YC/T 266-2008
5	Thermal Shrinkage	MD	%	6.0±1.0	9.0	YC/T 266-2008
		TD		6.0±1.5	9.3
6	Coefficient of Friction	A/A	/	μk≤0.25	9.3	GB10006-88
	F/F	A/C		/	0.17
	μk	C/C		/	0.2
7	Haze		%	≤2.0	1.2	GB2410-2008
8	Gloss		GU	≥87.0	88.90	GB8807-88
9	Sealing Strength		N/15mm	≥2.50	3.90	YC/T 266-2008
10	Water Vapor transmission rate		g/m2.24h.01mm	≤2.0	1.10	GB1037-80
Test    Condition:            Temperature:22.8℃;                 Humidity: 53.5 %



Advantage of DERFLEX flexible packaging BOPP film

1.     100% original PP raw material, to promise the high tensile strength, tearing resistance & scratch resistance.

2.     Achieve high folding quality in the packaging molding process, and can achieve good heat-sealing effect in a short pause time.

3.     During heat-sealing processing, no toxic body will be produced; it has the right molding ability for various special-shaped products; the heat-sealing film has high transparency and good gloss, which can clearly display the product appearance and increase purchase desire

4.     Not easy to embrittle, durable tear resistance, and ensure that the packaged material will not be deformed for a long time.



Related Products:

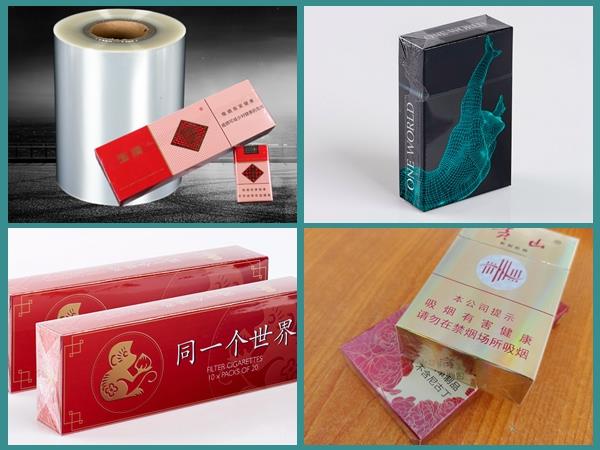

BOPP cigarette film is a micro-shrink type BOPP cigarette packaging film designed for the packaging of soft box and hard box cigarettes. It is suitable for various types of high and low speed cigarettes Packing Machine such as dry 3000, 6000, GDX1, GDX2, FOCKE, SASIB.

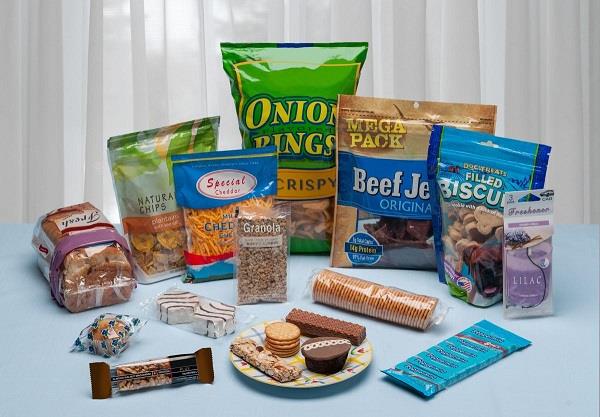

Food packaging BOPP Film

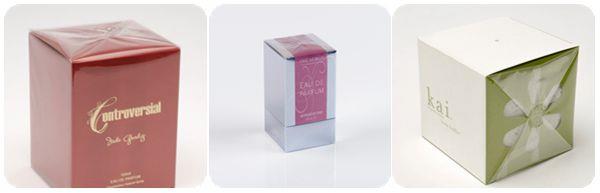

cosmetic packaging BOPP Film



Pallet Packaging BOPP film



DERFLEX is professional BOPP film manufacturers in China. For more information, please contact us freely!
